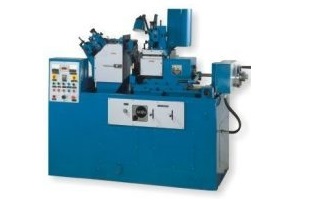

Centreless Grinding Machine
OPTIONAL:
- Automatic In-Feed Grinding Cycle
- Form dressing arrangement
- Auto loading & un-loading system
- Hydraulic ejector
- Bar feeding arrangement
- Variable speed drive for Grinding wheel
Specifications
| Model | HLC-100-S | HLC-150-S | |
| Grinding Range (Dia.) | mm | 2-100 | 2-125 |
| Grinding Wheel (dia x width) | mm | 350 x 100 | 350 x 150 |
| Regulating Wheel (dia x width) | mm | 230 x 100 | 230 x 150 |
| Reg. Wheel Speed (stepless) | rpm | 20-200 | 20-130 |
| Swivel of Regulating Wheel Head | deg | + 5 Vertical | + 5 Vertical |
| + 1.5 Horizontal | + 1.5 Horizontal | ||
| Gr. & Reg. Wheel dresser | Hydraulic | Hydraulic | |
| Gr. Wheel Motor Power | hp | 7.5 | 10 |
| Reg. Wheel Motor Power | hp | 1 | 2 |
Highlights:
- "HI-LIFE" Centreless Grinding Machines are suitable for In-Feed, Thru Feed & Form grinding of metallic and non-metallic components.
- These machines are specially designed for mass production with consistent accuracy.
Features:
- Hydrodynamic bearings for grinding wheel spindle
- Anti friction bearings for regulating wheel spindle
- Variable speed for regulating wheel
- Swivel of regulating wheel for fast and accurate taper correction and taper grinding.
- Centralized Lubrication System
Centreless Grinding Machine - Hi Speed
OPTIONAL:
- Form dressing arrangement
- Auto loading & un-loading system
- Hydraulic ejector
- Bar feeding arrangement
- Variable speed drive for Grinding wheel
Specifications
| Model | HLC-100-S | HLC-150-S | |
| Grinding Range (Dia.) | mm | 2-100 | 2-125 |
| Grinding Wheel (dia x width) | mm | 425 x 100 | 400 x 150 |
| Grinding wheel spindle type | Cartridge type with Antifriction bearings | ||
| Reg. Wheel Speed (stepless) | rpm | 20-200 | 20-130 |
| Swivel of Regulating Wheel Head | deg | + 5 Vertical | + 5 Vertical |
| + 1.5 Horizontal | + 1.5 Horizontal | ||
| Gr. & Reg. Wheel dresser | Hydraulic | Hydraulic | |
| Gr. Wheel Motor Power | hp | 10 | 10 |
| Reg. Wheel Motor Power | hp | 1 | 2 |
Highlights:
- "HI-LIFE" Hi-speed Centreless grinders have higher Grinding wheel diameter and very high Material Removal Rate
- Automatic infeed cycle provided for faster operations.
- Cartridge type Grinding Wheel Spindle provided in the machine, which is practically maintenance free and does not have thermal expansions.
Features:
- Cartridge type grinding wheel spindle with precision Anti friction bearings
- Anti friction bearings for regulating wheel spindle
- Automatic In-Feed Grinding Cycle
- Variable speed for regulating wheel
- Swivel of regulating wheel for fast and accurate taper correction and taper grinding.
- Centralized Lubrication System
